K2.92mm Series Male Stainless Steel for 2#Semi-rigid/flex mmW Cable Connector
K type, also known as 2.92mm connector, is a commonly used millimeter wave connector. The frequency of use can up to 40GHz.
With air interface, it can be interchanged with SMA series and 3.5mm connectors. It has the advantages of small size, light weight,
high frequency of use and reliable connection.
Xi'an Elite Electronic 2.92mm connectors are manufactured in male or female gender with 50Ohm impedance. 2.92mm connectors are available in threaded, bulkhead, 2 holes panel, 4 holes panel or mountless options. These 2.92mm connector designs include clamp/solder, field replaceable or solder attachment methods.
Specification:
| Impedance | 50Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
| Voltage Standing Wave Ratio
VSWR | ≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| | Outer Conductor ≤ 2.0 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| | Female Jack: Beryllium bronze, Gold Plated |
| Body / Shell / Housing | Brass, Gold Plated, Stainless Steel, Passivated |
| Insulator | PEI/PLF |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
*High performance up to 40GHz
*Low VSWR
*Excellent return loss and insertion loss
*Ruggedized construction for repeatability
*Compitable to mate with SMA, 3.5 mm and other K or 2.92 mm connectors
Application:
*Optical Testing
*Lab & Bench Testing
*Satellite Communication Equipment (SATCOM)
*Microwave
*Quantum Computing
Related products:

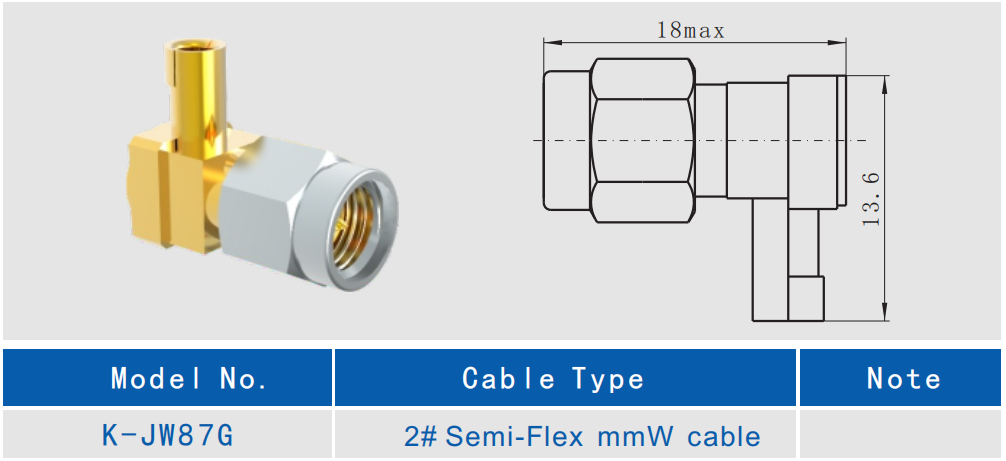

| K-JW87G | K male right angle stainless steel for 2#Semi-flex Cable Assembly | |
| K-K87G | K female stainless steel for 2# Semi-rigid/flex cable assembly |
