Micro D Sub Male connector With 21 Pins Wire Length 500mm DC Connector

Name: Micro D Sub Male connector With 21 Pins Wire Length 500mm DC Connector
Brand: ELT (Elite)
Price: 1 USD

Quality Micro D Sub Male connector With 21 Pins Wire Length 500mm DC Connector for sale

Brand Name : ELT (Elite)

Model Number : J30J-21TJL-500

Certification : ROHS ISO-9001-2015

Place of Origin : China

MOQ : 5pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100pcs per week

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Material : aluminum alloy

Section area : 0.1-0.15mm²

Contact spacing : 1.27mm

Product name : J30J Miniaturized Rectangular

Contact type : micro twist pin, gold plating

Termination type : soder / welding wire

Pins available : 9,15,21,25,31,37,51,66,74,100 pins

locking assembly : L type, Hex Head, Jackscrew

Contact Now

Micro D-sub Male with 21 Pins Wire Length=500mm DC Connector

This series of products is equivalent to American MDM series products, etc. the shell is aluminum alloy, the contact spacing is 1.27mm, and the applicable core cross-sectional area is 0.1-0.15mm2. The performance of this product conforms to gjb2446a (General specification for rectangular electrical connector with micro polarized housing), which is equivalent to mil-dtl-83513, and is divided into ordinary (housing) and improved (housing). It has the advantages of small installation space, light weight, reliable connection, good electromagnetic shielding, good seismic resistance and so on. It is widely used in electronic equipment and instruments with small space requirements.

Micro D Sub Male connector With 21 Pins Wire Length 500mm DC Connector

NOTE:

The common connectors include 6 subfamilies: crimp contact connectors, solder contact connectors, in-line contact
for PCB N, in-line contact for PCB N-J, right angle contact for PCB W, right angle contact for PCB W-J.

Specification:

Current Rating	3A
Voltage Rating	300V
Insulation Resistance	≥ 5000 MΩ
Durability	500 cycles
Dielectric Withstand Voltage	800
Environmental Temperature	-55℃ ~ + 125℃
Relative Humidity	up to 95% at +40℃
Vibration	10Hz~ 2000Hz 196m/S²
Total acceleration RMS	23.1G
Impact	735m/S²

Applications:

- Avionics, radars
- Missiles and guidance systems
- On-board equipment
- Telecommunication systems
- Navigation systems
- Research centres

- Board to Cable
- Medical applications
- Surface Mount (SMT) Board to Cable

Features:

-0.635mm, 1.27mm, 1.91mm contact spacing
-1, 2, 3, 4-raw options,
-Twist pin, high contact density
-9-100 contacts
-Mil-dtl-83513 certification
-Save space and weight.
-Straight and right angle model selection
-Excellent shock and vibration resistance.
-Low contact resistance, high current capacity and high dielectric strength.
-Custom designed connector and cable assemblies.
-The termination method is crimping, and the grid is (row × Wire) 1.27 × 2.54.

Series:

- J30J series
- J30JM( Hermetic) series
- J30(Plastic) series
- J50J series
- J55A series
- J55AM( Hermetic) series
- J56J series

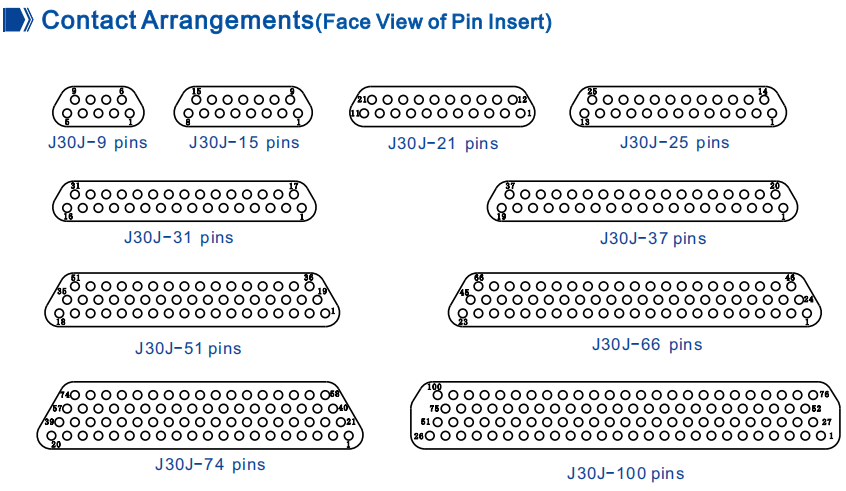

J30J-31TJL Detailed Drawing: (Unit:mm)

Micro D Sub Male connector With 21 Pins Wire Length 500mm DC Connector

Locking Assembly:

Micro D Sub Male connector With 21 Pins Wire Length 500mm DC Connector

NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
