TNC Female Right Angle 4-hole Flange RF Connector with Microstrip
The TNC series product is a threaded derivative of the BNC connector, featuring screw threads for a secure connection. These compact, threaded, and waterproof units maintain a consistent 50-ohm impedance and operate within the DC to 11 GHz frequency range. There are two primary types of TNC connectors: standard and reverse polarity. Constructed from die-cast and molded materials, these cost-effective connectors are well-suited for a variety of commercial uses. While their performance may not rival industrial or high-performance products, they are commonly used for antenna connections and have many applications in avionics, communications, and general industry. Additionally, reverse polarity and 75-ohm variants of the TNC connectors are also available.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~4GHz |
| Rated Voltage | 2500VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 750VRMS (Maximum sea-level) |
| Insulation Resistance | ≥2000MΩ |
| Contact Resistance | Outer conductor | ≤6mΩ |
| Center conductor | ≤1.5mΩ |
| VSMR | ≤1.3 |
Mechanical Specification
| Design Standard | IEC 60169-17 |
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |
Environmental Specification:
| Operating Temperature | -30 to +70 Deg C |
| IP Rating ( Mated ) | IP64 |

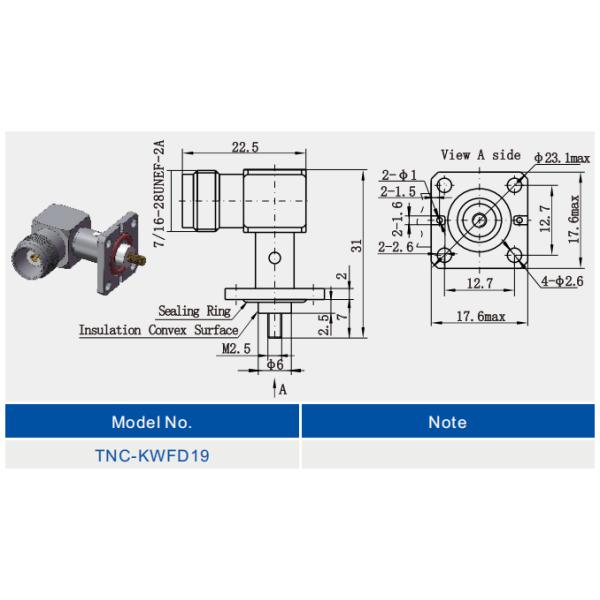

Detailed Drawing
Features:
Strong environmental adaptability
1. Wide temperature range: can work in a wide range of temperatures, generally able to adapt to -55 ° C to +125 ° C ambient temperature, and some products can even be used at higher or lower temperatures, which makes the TNC adapter can be applied to a variety of different climatic conditions and use of the environment.
2. Good sealing performance: With good sealing, it can prevent moisture, dust and other external substances from entering the connector, thus protecting the reliability and stability of the connection and improving its service life, especially suitable for outdoor or humid, dusty and other harsh environments.
Application:
Aerospace field
1. Aircraft communication system: In aircrafts, TNC adapters can be used to connect the aircraft's communication equipment, navigation equipment and antennas, etc., to realize the communication and navigation between aircrafts and ground control centers and other aircrafts, and to ensure the safety and smoothness of flights.
2. Satellite communication system: In satellite communication system, TNC adapters are used to connect communication equipment and antennas on satellites to realize communication between satellites and ground stations, providing reliable connection for satellite communication.
NOTE:
We have over 10,000 types of TNC Connector, if the connector you are using is not found, please contact us with your details.
